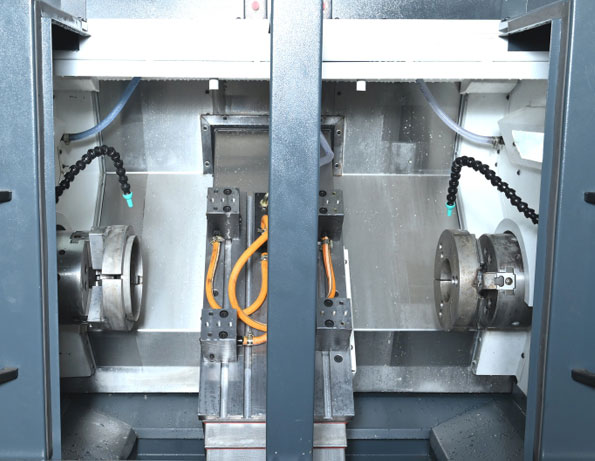

Vijayta (Double Head)
MACHINE SPECIFICATIONS
| Capacity |
- |
Vijayta 165 |
Vijayta 200 |
| Max. Swing Over Bed |
mm |
300 |
350 |
| Max Turning Length |
mm |
200 |
250 |
| Max. Job Swing Dia |
mm |
150 |
200 |
| Chuck Size |
mm |
165 |
200 |
| Main Spindle |
|
| Spindle Nose |
- |
A2-5 |
A2-5 |
| Spindle Power |
Kw |
3.7/5.5 |
5.5/7.5 |
| Spindle Speed |
RPM |
3500 |
3000 |
| Bore Through Drawbar |
mm |
36 |
40 |
| Feed Rates |
|
| Rapid Traverse X-Axis |
mt/min |
20 |
20 |
| Rapid Traverse Z-Axis |
mt/min |
20 |
20 |
| Tail Stock |
|
| Quill Dia./Stroke |
mm |
70 |
70 |
| Quill Taper |
No. |
MT4 |
MT4 |
| Quill Travel |
mm |
75 |
100 |
| Turret/Tooling |
|
| Size (Model) |
BTP |
63 |
80 |
| No. Of Tool Positions |
No. |
8 |
8 |
| Tool Shank Size |
mm |
20x20 |
25x25 |
| Max Boring Bar Dia |
mm |
32 |
40 |
| CNC System |
Make |
Fanuc/Siemens/Delta |
Fanuc/Siemens/Delta |
| Accuracy |
|
| Positioning Accuracy |
mm |
±0.003 |
±0.003 |
| Repeatability |
mm |
±0.004 |
±0.004 |
| Parameters |
|
| Overall Size (LxBxH) |
mm |
2000x1400x1600 |
2200x1400x1800 |
| Machine Weight (Approx) |
kg |
2500 |
2800 |
- Standard Accessories : Hydraulic Chuck and hollow cylinder, one set of soft jaws, Hydraulic Power Pack, Coolant Supply Equipment, Centralized Lubrication Equipment, Work Light, Foot Switch, USB.
- Optional Accessories : Chip Conveyor, Coolant Gun, Panel AC, Bar Feeder, Hard Jaws.
